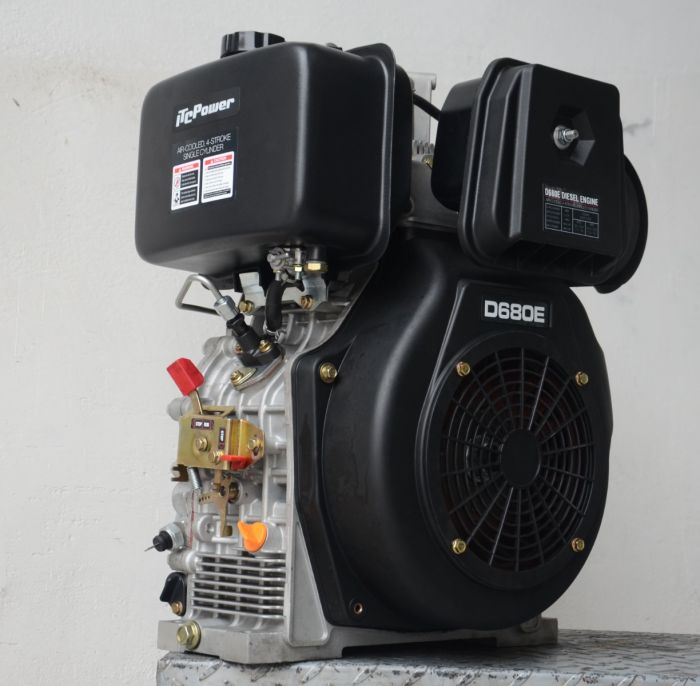

D680E 14Hp ITC Diesel Air Cooling Engine
$1,945.00
SKU
D680E ITC Diesel Air Cooling Engine
Model D680E
Type Single cylinder, vertical, 4-stroke, air-cooled
BoreXstroke [mm] 102×83
Displacement [L](cc) 0.678 (678)
Compression ratio 20:1
Rated speed (rpm) 3000-3600
Rated power [kW(Hp)] 10.5(14.3)
Max. power [kW(Hp)] 11.5(15.7)
Fuel tank capacity [L] – N/A
Fuel consumption [g/kw.h] ≤280
Lube oil capacity [L] 2
Electric start
Output Shaft 1” 25.4mm with Keyway
Oil Grade SAE10W-30 15W-40
Net Weight [kG] Elec. Start 65
Dimension L×W×H [mm] 433 × 475 × 537
12 month (return to base) Warranty
Supplied with 2 x base mounting brackets
Optional: Oil Bath Air filter available
More Information
More Information
| Dry Weight (Kg) |
65.000000 |
| Short Description |
Model D680E
Type Single cylinder, vertical, 4-stroke, air-cooled
BoreXstroke [mm] 102×83
Displacement [L](cc) 0.678 (678)
Compression ratio 20:1
Rated speed (rpm) 3000-3600
Rated power [kW(Hp)] 10.5(14.3)
Max. power [kW(Hp)] 11.5(15.7)
Fuel tank capacity [L] – N/A
Fuel consumption [g/kw.h] ≤280
Lube oil capacity [L] 2
Electric start
Output Shaft 1” 25.4mm with Keyway
Oil Grade SAE10W-30 15W-40
Net Weight [kG] Elec. Start 65
Dimension L×W×H [mm] 433 × 475 × 537
12 month (return to base) Warranty
Supplied with 2 x base mounting brackets
Optional: Oil Bath Air filter available
|
