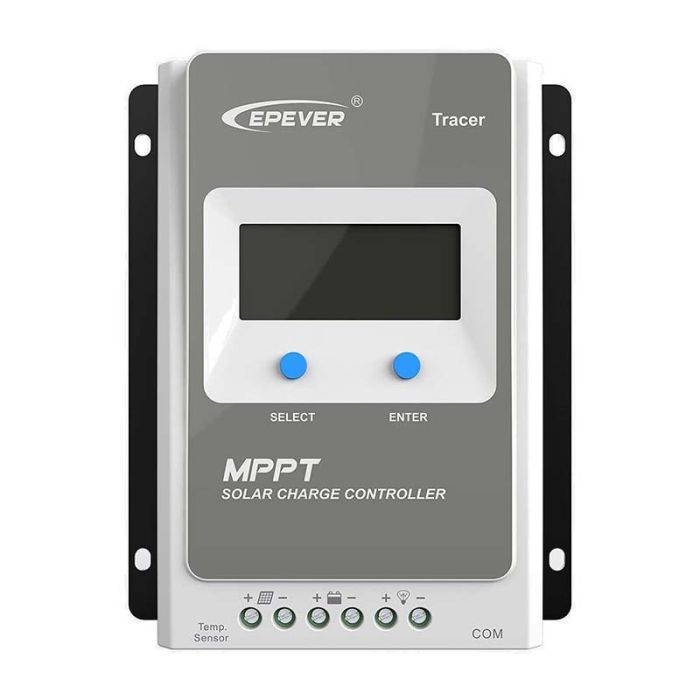

EPEVER 30A MPPT Controller 3210AN

EPEVER 30A MPPT Controller

The Epever Tracer-AN Series 3210 Solar Controller is a smart addition to your solar power system with lead-acid or lithium-ion batteries.

Featuring an adaptive three-stage charging algorithm, the controller can extend the life-cycle of your batteries.

Designed with advanced MPPT technology, the controller tracks the maximum power point and acquires the maximum solar energy to improve solar efficiency.

Ideal for various applications including RVs and household systems.

This controller uses the most advanced MPPT technology to ensure high efficiency (>98%) of your solar system.

Significantly outperforms standard PWM controllers.

Ultra-fast tracking speed and guaranteed tracking efficiency, advanced MPPT control algorithm to minimize the maximum power point loss rate and loss time.

Built-in LCD screen displays key charging parameters.

Multiple connectivity options for the controller (remote meter, mobile app, PC software etc) enable the user to personalise each charging stage, create a user-defined battery type with specific parameters and access exclusive settings.

Multiple protections eliminate safety hazards, low voltage input protection, over voltage input protection, over charge power protection, low voltage output protection, rated output current protection, temperature protection, PV and battery reverse connection protection.

With Modbus communication protocol interface, full-load operation without any drop in capacity within the range of working environment temperature, it is convenient for customers to expand applications and monitor in various fields like telecommunication base station, household system, street lighting system, wilderness monitoring system, etc.

Compatibility with multiple battery types for convenient use, support Sealed lead acid, gel, flooded, lithium and users.

Suitable for solar panels up to 390W (12V battery or battery bank) or 780W (24V system). Current limiting function (30A) allows possibility of adding more solar panels in the future.

We can also supply Bluetooth or Wifi modules to connect to this controller or optional MT50 remote display can be purchased

12 Month Warranty

More Information
Dry Weight (Kg) 1.2600
Dimensions LxWxH (mm) 228x164x55
