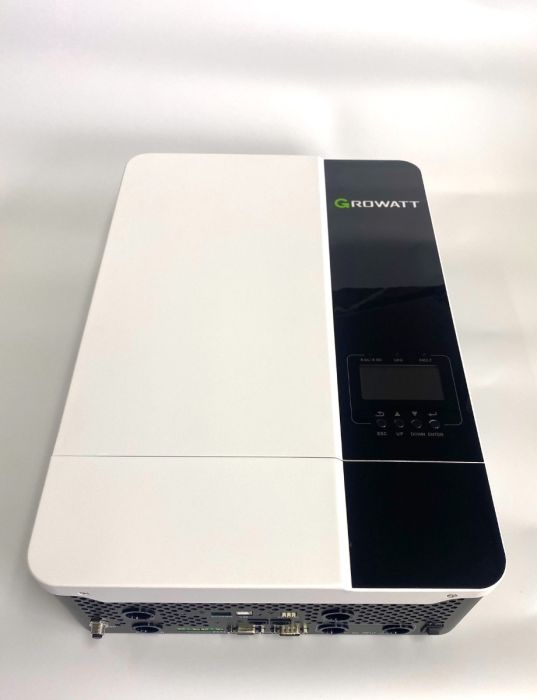

Growatt SPF 5000ES Inverter Charger MPPT with WiFi Module
The SPF 5000 ES Growatt Solar Inverter can work with or without batteries.
This is a multifunctional off grid solar inverter which seamlessly integrates a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module making this unit suitable for off grid backup power and self-consumption applications.
- Integrated MPPT charge controller for optimized solar energy conversion
- Configurable grid or solar input priority
- Free Wifi Module Included (valued at $179.00)
- Parallel for scalability
- AC input available
- High Voltage PV input (Maximum up to 450V DC)
- Joint usage of PV and grid power if PV energy is insufficient
- Flexible schedule Inverter charging and discharging times
- Inverter OUTPUT: 5000W / Max PV Array Power: 6000W / Maximum Solar Charge Current: 100A / AC Charge current: 80A
INVERTER OUTPUT:
Rated Power - 5000VA/5000W
AC Voltage Regulation - 230VAC + 5% @ 50/60Hz
Parallel Capability - YES, 6 Units Maximum
Surge Power - 10000VA
Efficiency (Peak) - 93%
Waveform - Pure Sine Wave
Transfer Time - 10ms typical, 20ms Max
SOLAR CHARGER:
Maximum PV Array Power - 6000w
MPPT Range @ Operating Voltage - 120VDC ~ 430VDC
Maximum PV array open circuit voltage - 450VDC
Maximum Solar Charge Current - 100A
Maximum Efficiency - 98%
AC CHARGER:
Charge Current - 60A
AC Input Voltage - 230VAC
Selectable Voltage Range - 90~280VAC (For Home Appliances)
Frequency Range - 50/60Hz (Auto Sensing)
SPECIFICATIONS:
Protection Degree - IP20
Dimension (LxWxH) in mm - 485 x 330 x 135
Net Weight - 12kg
OTHER:
Humidity - 5% to 95% Relative Humidity (Non-Condensing)
Operating Temperature - 0 °C - 55 °C
Storage Temperature - -15 °C - 60°C
| Dry Weight (Kg) | 12.000000 |
|---|---|
| Short Description | The SPF 5000 ES Growatt Solar Inverter can work with or without batteries. This is a multifunctional off grid solar inverter which seamlessly integrates a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module making this unit suitable for off grid backup power and self-consumption applications. |
