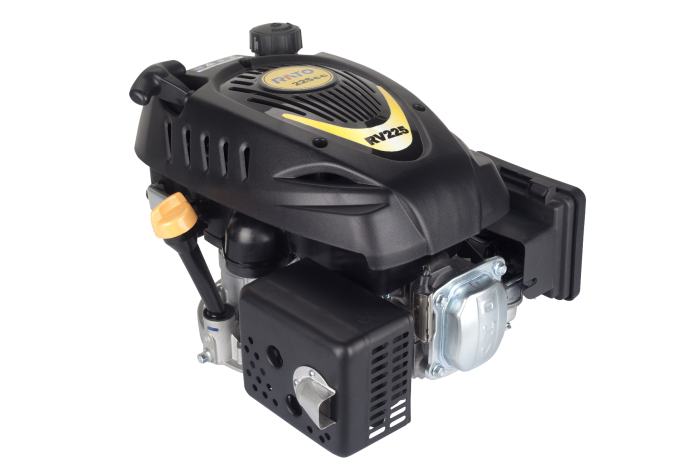

Rato 7hp Vertical Engine - RV225 22.2mm

$345.00
SKU
RV225-22.2

7hp Rato Lawn Mower Engine with Auto Choke feature with 22.22mm Shaft





Shaft 7/8" (22.22mm) 2 x Half moon (Woodruff) Keyways 5/32" (4mm) -at mid shaft and lower shaft And full length keyway 3/16” (4.76mm) 80.2mm Long from mounting surface comes with shaft thread 3/8 UNF (25mm tread depth)

These engines are designed for commercial use.

The key features of these RV Engines: They are an Easy Starter with High Performance and a Long Life which is why they are used by Husqvarna and Karcher.

Fits most lawn mowers and has the same mounting as 3.5Hp, 5Hp, 6.5hp. 7.5hp Briggs & Stratton engines.

More Information
Output Shaft Orientation Vertical
Net Power 4.0Kw / 3600RPM
Net Torque 12.5Nm / 2500RPM
Bore×Stroke 72 x 55mm
Displacement 223cc
Compression ratio 8.3:1
Starting System Recoil
Dimensions LxWxH (mm) 404 x 362 x 292
Shaft Diameter 7/8" (22.22mm)
Shaft Length 80.2mm from Engine Mounting Surface to tip of Shaft
Warranty Return to Base - 2Yr Domestic 1Yr Commercial
Dry Weight (Kg) 12.500000
Short Description

7hp Rato Lawn Mower Engine with Auto Choke feature with 22.22mm Shaft





Shaft 7/8" (22.22mm) 2 x Half moon (Woodruff) Keyways 5/32" (4mm) -at mid shaft and lower shaft And full length keyway 3/16” (4.76mm) 80.2mm Long from mounting surface comes with shaft thread 3/8 UNF (25mm tread depth)
