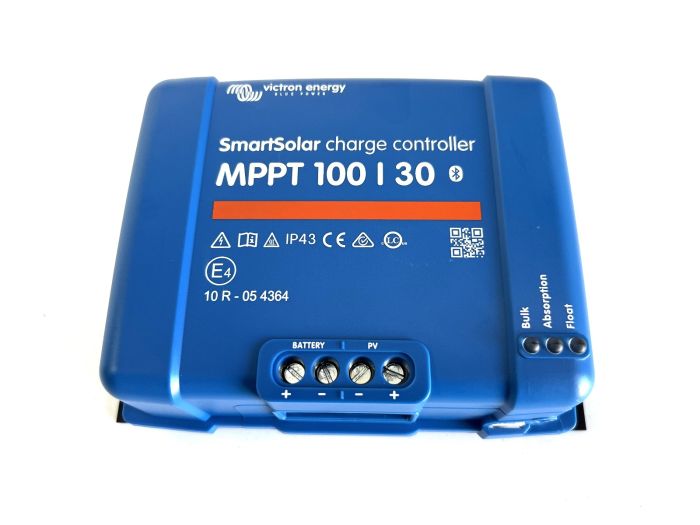

Victron SmartSolar MPPT 100/30

All of the Smart Solar models have Bluetooth communication built-in which allows you to interface with the controller via the VictronConnect app on your Apple/Android/Windows device. Through this app, you can configure an extensive range of functions on your controller and monitor its performance in real-time and via historical stats.

Victron's Smart Solar MPPT range of controllers help you maximise the amount of energy obtained from your solar panels.  Under cloudy sky conditions when light intensity is continually changing, these ultra-fast controllers can improve energy harvest by up to 30% compared with controllers using older PWM technology, and by up to 10% compared with slower MPPT models.

This controller is recommended for a maximum panel power of 440W (12V system) or 880W (24V system)

Features

• Ultra Fast MPPT (Maximum Power Point Tracking) Technology
• Bluetooth communication built-in
• Intelligent battery life management
• Programmable charge algorithm
• Battery reverse polarity protection
• Panel reverse polarity protection
• Output short circuit protection (internal fuse)
• Over-temperature protection
• 5-year manufacturer's warranty

Battery Voltage : 12/24v Auto Select

Rated Charge Current : 30A

Nominal PV power 12V : 440W

Nominal PV power 24V : 880W

Maximum PV open circuit voltage : 100V

Maximum PV short circuit current : 35A

Maximum Efficiency : 98% due to no cooling fan

Protection : Battery reverse polarity, PV reverse polarity, Output Short Circuit, Over Temperature

Operating Temperature : -30 to +60 Degrees C (full rated output up to 40 Degrees C)

Humidity : 95% Non Condensing
