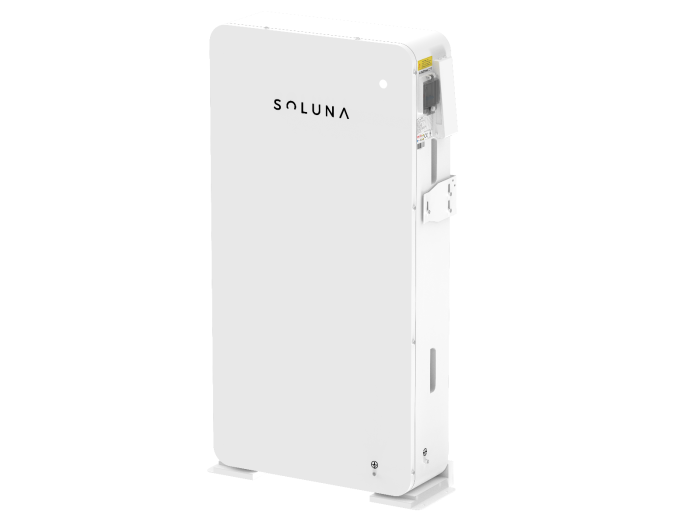

Soluna 15K Battery Module HV
The Soluna 15K Pack is a three-phase battery module that enables energy storage to maximise self-consumption from your solar system to reduce electricity bills and provide energy independence.
A 3-Phase residential or commercial solution to keep you powered night and day.
Soluna’s HV 15K Module is the pre-assembled High-voltage LiFePO4 Lithium battery storage systems designed specifically for 3-phase homes and small businesses which captures excess renewable energy for use during peak times, enhancing self-sufficiency and lowering electricity bills.
Pair the Module with a compatible 3-ph HV hybrid inverter for flexible system design, daily storage and independent blackout protection across all three loads offering energy security and peace of mind.....all day, every day.
The parallel connection of up to 4 identical HV Packs allows a maximum capacity of 60kWh, suitable for homes of all sizes.
Height (mm) : 1208
Width (mm) : 656
Depth (mm) : 229
Weight (kg) : 141
Installation : Floor-stand
Battery type : Lithium LFP
Nominal capacity (kWh) : 15
Usable capacity (kWh) : 13.5
Nominal voltage (V) : 390
Voltage range (usable) (V) : 336 – 420
Charge voltage (V) : 420
Discharge voltage (V) : 360
Charge/discharge current (nominal) : 20/20
(A) Charge/discharge current (max.) : 40/40
(A) Depth of discharge (DoD) (%) : 90
Operating temperature (°C) : -10 to 50
Operating temperature (recommended) (°C) : 15 to 30
Storage temperature (°C) : -30 to 60
Humidity conditions (%) : 5 to 95
Altitude (m) : Max. 2,000
Cooling strategy : Natural Convection
Certification : Cell: UL1642 // Battery Pack: CE & IEC62619 & UL1973
Hazardous materials classification : Class 9
Transportation : UN38.3
Ingress protection rating : IP 54
System configuration : 1 to 4 Parallel
Product and performance : 10-year standard warranty
| Brand | Soluna |
|---|---|
| Dry Weight (Kg) | 141.0000 |
