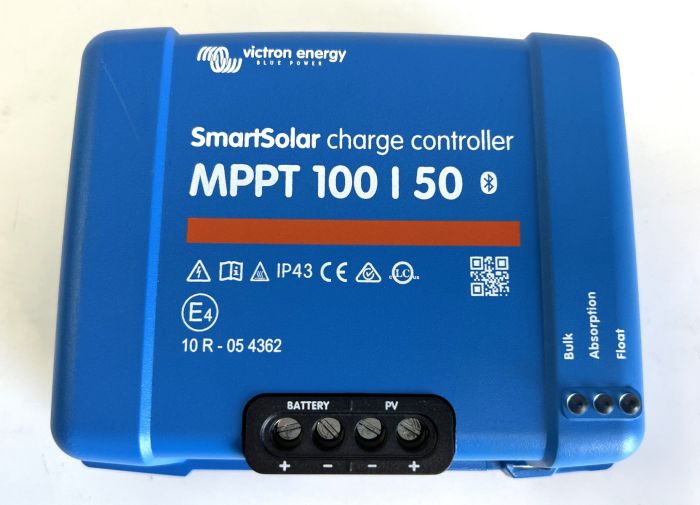

Victron SmartSolar MPPT 100/50

Victron SmartSolar MPPT 100/50

The Victron MPPT Charge Controller 100/50 maximises Solar Energy-Harvest, to achieve full charge in the shortest possible time and helps you to maximise the amount of energy obtained from your Solar Panels.

These advanced MPPTs also include Advanced Maximum Power Point Detection in case of partial shading conditions.

All of the Smart Solar models have Bluetooth communication built-in which allows you to interface with the controller via the VictronConnect app on your Apple/Android/Windows device. Through this app, you can configure an extensive range of functions on your controller and monitor its performance in real-time and via historical stats.

Victron's Smart Solar MPPT range of controllers help you maximise the amount of energy obtained from your solar panels.  Under cloudy sky conditions when light intensity is continually changing, these ultra-fast controllers can improve energy harvest by up to 30% compared with controllers using older PWM technology, and by up to 10% compared with slower MPPT models.

This controller is recommended for a maximum panel power of 440W (12V system) or 880W (24V system)


  • Ultra Fast MPPT (Maximum Power Point Tracking) Technology
  • Bluetooth communication built-in
  • Intelligent battery life management
  • Programmable charge algorithm
  • Battery reverse polarity protection
  • Panel reverse polarity protection
  • Output short circuit protection (internal fuse)
  • Over-temperature protection
  • 5-year manufacturer's warranty

Battery Voltage : 12/24v Auto Select

Rated Charge Current : 50A

Nominal PV power 12V : 700W

Nominal PV power 24V : 1400W

Maximum PV open circuit voltage : 100V

Maximum PV short circuit current : 60A

Maximum Efficiency : 98% due to no cooling fan

Protection : Battery reverse polarity, PV reverse polarity, Output Short Circuit, Over Temperature

Operating Temperature : -30 to +60 Degrees C (full rated output up to 40 Degrees C)

Humidity : 95% Non Condensing

More Information
Dry Weight (Kg) 1.3000
Dimensions LxWxH (mm) 130 x 186 x 70
